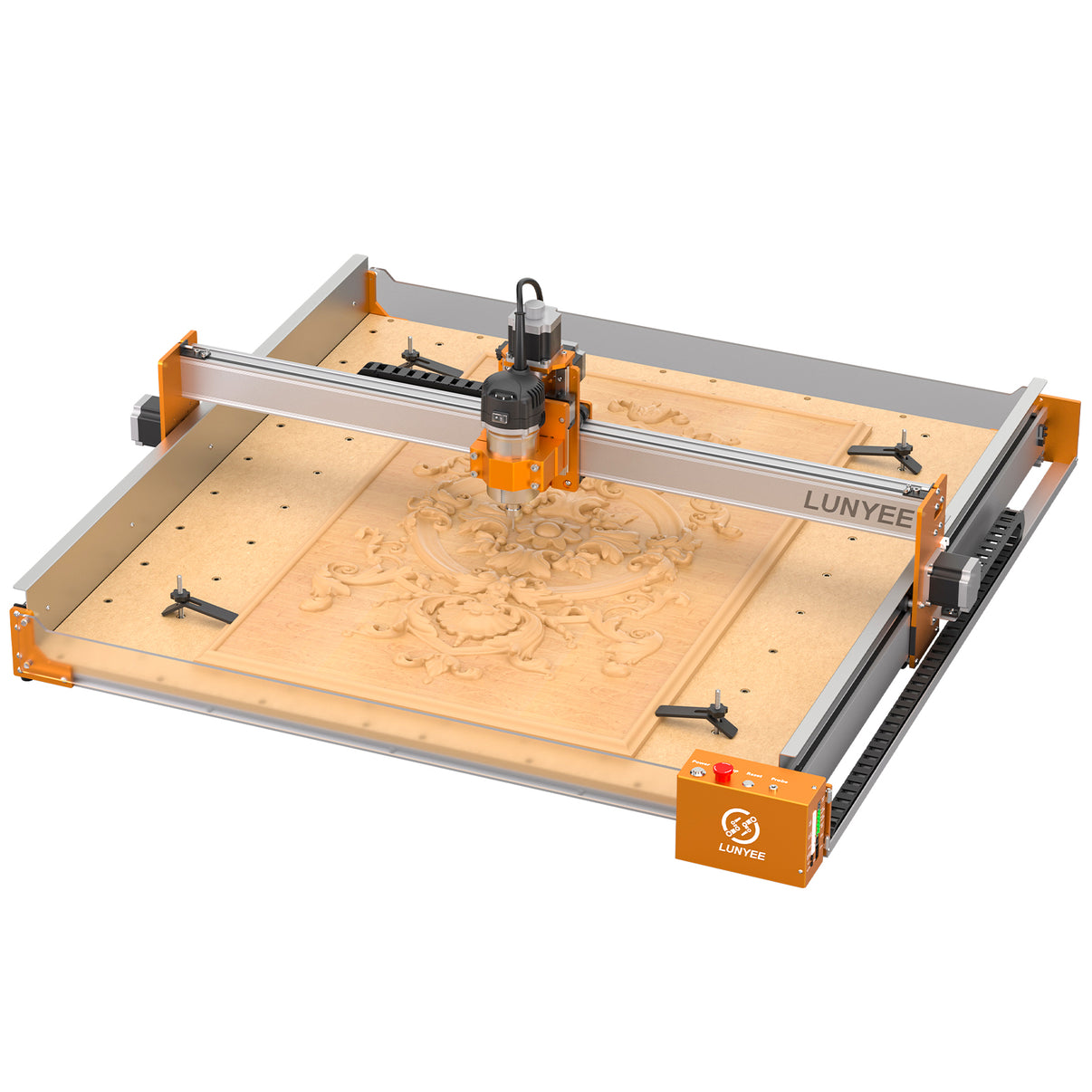

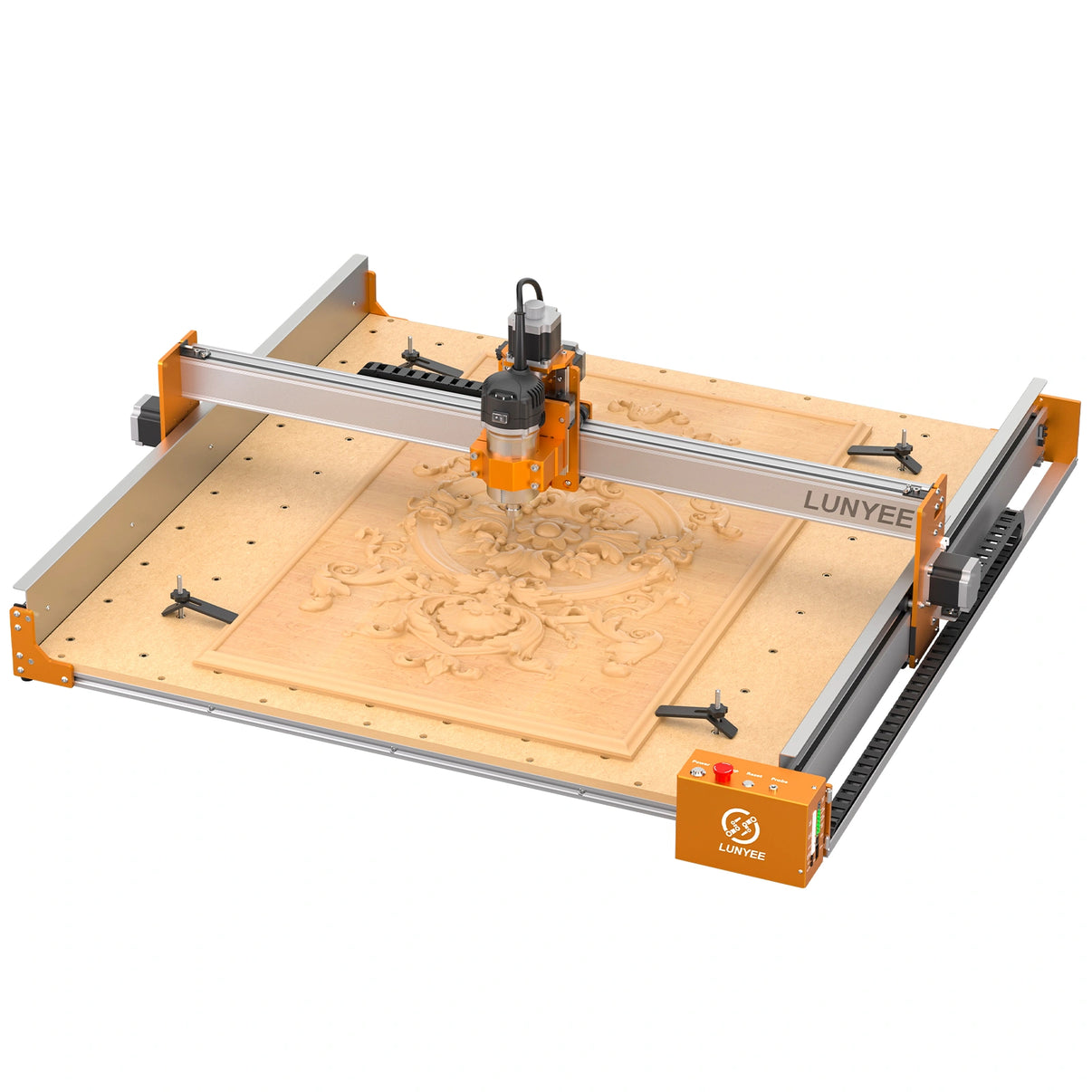

LUNYEE 8080 Pro Max CNC Router Machine for Woodworking, 800x800x100mm Work Area, 710W Trimmer & Linear Rail Driven

Super Early Bird: $200 OFF at Checkout (20 Units Only)

00 d

:

00 h

:

00 m

$999.00

Shipping calculated at checkout.

Option(EU&US -VAT FREE): Machine (Super Early Bird)

Machine (Super Early Bird)

Ship to: USA (ETD: End June)

USA (ETD: End June) Europe (ETD: End June) UK (ETD: End June) Japan (ETD: End June) Canada (ETD: End June) Australia (ETD: End June)

Product variants

Payment and security

View details

710W High-Torque Spindle, Work Wood Faster and with More Control

Power up your workshop with a 710W high-speed spindle built for stronger, smoother woodworking performance. Compared with standard low-power motors, the 8080 PRO MAX delivers higher torque, more stable RPM, and better control through every cut. From hardwood to thick acrylic and aluminum, it handles demanding jobs with clean edges, minimal burrs, and consistent precision. Push feed rates faster, work more efficiently, and achieve professional-quality results on every project.

Think Bigger, Create Without Limits | Massive 800x800mm Workspace

Break free from small-scale constraints. The LUNYEE 8080 PRO MAX (Extended Edition) delivers an expansive 800 x 800mm (31.5" x 31.5") working area, making it the ultimate tool for ambitious projects. Whether you are crafting full-sized furniture components, large-scale architectural models, or batch-producing dozens of items in a single setup, this massive canvas provides the professional capacity you need. Combined with the upgraded 100mm Z-axis depth, you now have the space and the power to transform even your largest visions into reality.

Precision You Can See in Every Cut

The LUNYEE 8080 PRO MAX features a 40 × 60mm thickened X-axis profile for greater structural rigidity, while the Z-axis is equipped with dual HG-15 linear rails and a precision 1204 ball screw for smoother motion and more precise control under load. Together, these components help maintain accuracy of up to ±0.05mm. Whether you're doing deep 3D carving or fine metal work, the machine stays stable throughout the job for more consistent, professional-quality results.

Unstoppable Power | High-Torque NEMA 23 Motors for Heavy-Duty Milling

Power meets precision. The LUNYEE 8080 PRO is equipped with upgraded NEMA 23 Stepper Motors, delivering significantly higher torque than standard NEMA 17 motors. This massive boost in driving force ensures smooth, consistent motion even when the 710W spindle is tackling tough materials like Aluminum, Brass, and Hardwoods. Say goodbye to lost steps and hello to reliable, high-speed carving. Whether it's deep 3D reliefs or high-feed rate cutting, these industrial-grade motors provide the relentless strength needed for your most demanding projects.

A Reinforced Frame, Built for Greater Stability

The LUNYEE 8080 PRO MAX features a fully reinforced frame, built around an ultra-thick aluminum X-axis beam and additional base support components for a stronger, more rigid foundation. This upgraded structure helps minimize work platform flex and reduce high-frequency vibration during heavy cuts.
As a result, the machine stays more stable under load. You will get better cutting control, more consistent performance, and cleaner results across demanding jobs.

Flawless Finishes | X-Axis Integrated LED Lighting

Never work in the dark again. The LUNYEE 8080 PRO MAX features sleek, hidden LED light strips integrated directly into the X-axis beam. This brilliant, glare-free illumination casts a clear light directly onto the working area, allowing you to monitor intricate carvings, verify toolpath accuracy, and inspect material alignment in real-time. Whether you are working late or need to check fine details, this thoughtful lighting design enhances both operational safety and creative precision.

More Materials. More Ways to Create.

With a rigid structure and a powerful 710W spindle, this 8080 CNC machine gives you the ability to machine aluminum, copper, acrylic, hardwood, and PCB boards with greater confidence and control. So as your projects become more advanced, your machine is ready to keep up. Also you can switch to an optional laser module for custom branding, leather work, and detailed engraving on glass and stone. One machine, more materials, and more ways to turn ideas into finished work.

Clean Workspace, Unlimited Length | Removable Magnetic Baffles

Keep your workshop spotless without sacrificing capability. The LUNYEE 8080 PRO MAX features a Magnetic Acrylic Dust Baffle system that effectively blocks flying debris and wood chips during carving. Need to process extra-long materials,The front and rear baffles can be snapped off in seconds thanks to the magnetic mount, creating a pass-through design that allows you to feed oversized boards through the machine. Combined with the rotatable control box, you get total flexibility for material loading and a significantly easier cleanup process.

Smarter Control, Made Simple

The 8080 PRO MAX comes equipped with an industrial-grade compact aluminum controller box that makes CNC control simpler, safer, and more efficient. Powered by a 32-bit open-source control board, it delivers faster processing for smoother motion and more advanced toolpaths, while the intuitive layout keeps everyday operation clear and easy.

One Machine, Endless Upgrades | 52mm & 65mm Dual Spindle Clamps

Future-proof your workshop with the LUNYEE 8080 PRO MAX’s unmatched compatibility. Equipped with both 52mm and 65mm precision clamps, this machine seamlessly integrates with a vast range of tools. Whether you are using the standard 500W Spindle for delicate work, upgrading to a high-powered 65mm Trimmer Router (710W) for heavy-duty milling, or mounting a high-speed Laser Engraving Module (up to 10,000mm/min) for intricate branding, the 8080 PRO adapts to your needs. This versatile platform allows you to switch between CNC routing and laser engraving in minutes, making it the only tool you’ll ever need for multi-material mastery.

Full Creative Control | Compatible with Industry-Standard Open-Source Software

Experience a truly open workflow with the LUNYEE 8080 PRO MAX. Powered by the high-performance 4-Axis 5.0 GRBL 1.1f control board, this machine integrates seamlessly with the world’s most popular CNC and laser software. Whether you prefer UGS (Universal G-Code Sender) and Candle for precision routing, or Lightburn for advanced laser projects, the 8080 PRO adapts to your favorite tools. With full cross-platform support for Windows, Linux, and Mac, you can design and carve on the hardware you already own, ensuring a smooth transition from digital concept to physical masterpiece.

Specifications

Product	LUNYEE 8080 Pro Max	LUNYEE 4040 Pro
Frame Material	Aluminum & steel rail structure	Aluminum & steel rail structure
Max Speed (mm/min)	5000	5000
Spindle Power	710W,6-Speed	100W
Spindle Speed	6000 - 30,000 RPM	0 - 10,000 RPM
Running Accuracy	≤ ±0.05mm	≤ ±0.05mm
Drive System	Z-axis: Dual HG15 Linear Guides & 1204 Ball Screw	Z-axis: Dual HG15 Linear Guides & 1204 Ball Screw
Stepper Motor	Nema 23 (57 series) 2.8A, 1.8N.m torque	Nema 17 (42 series) 1.68A, 0.55N.m torque
Working Area	31.5“ x 31.5” x 3.94“ (800 x 800 x 100mm)	15.75“ x 15.75” x 3.54“ (400 x 400 x 90mm)
Control Board Compatibility	GRBL 1.1f Compatible (32-bit ARM Processor)	GRBL 1.1f Compatible (32-bit ARM Processor)
MCU	32-Bit	32-Bit
Software	GRBL Firmware, e.g. Easel, Candle,UGS, Fusion360, LaserGRBL, LightBurn	GRBL Firmware, e.g. Easel, Candle,UGS, Fusion360, LaserGRBL, LightBurn
Compatible Operating Systems	Windows XP/7/8/10/11, Linux, Mac OS	Windows XP/7/8/10/11, Linux, Mac OS
Weight	28kg (62 lb)	17kg (38 lb)
Spindle Mount	52mm & 65mm & 69mm	52mm & 65mm & 69mm
Power Supply	AC110/230V (Switch Power)	AC110/230V (Switch Power)
Limit Switches	6-Way (X±, Y±, Z±)	6-Way (X±, Y±, Z±)
Safety Features	Dedicated Emergency Stop (E-Stop) Button	Dedicated Emergency Stop (E-Stop) Button
Offline Control	Supported (via Optional Offline Controller)	Supported (via Optional Offline Controller)
Laser Support	Supports PWM 12V/24V Laser Modules	Supports PWM 12V/24V Laser Modules

Support:

One-year Warranty For Free

Compatible with GRBL-Base CAM/CNC Software

What's in the box
