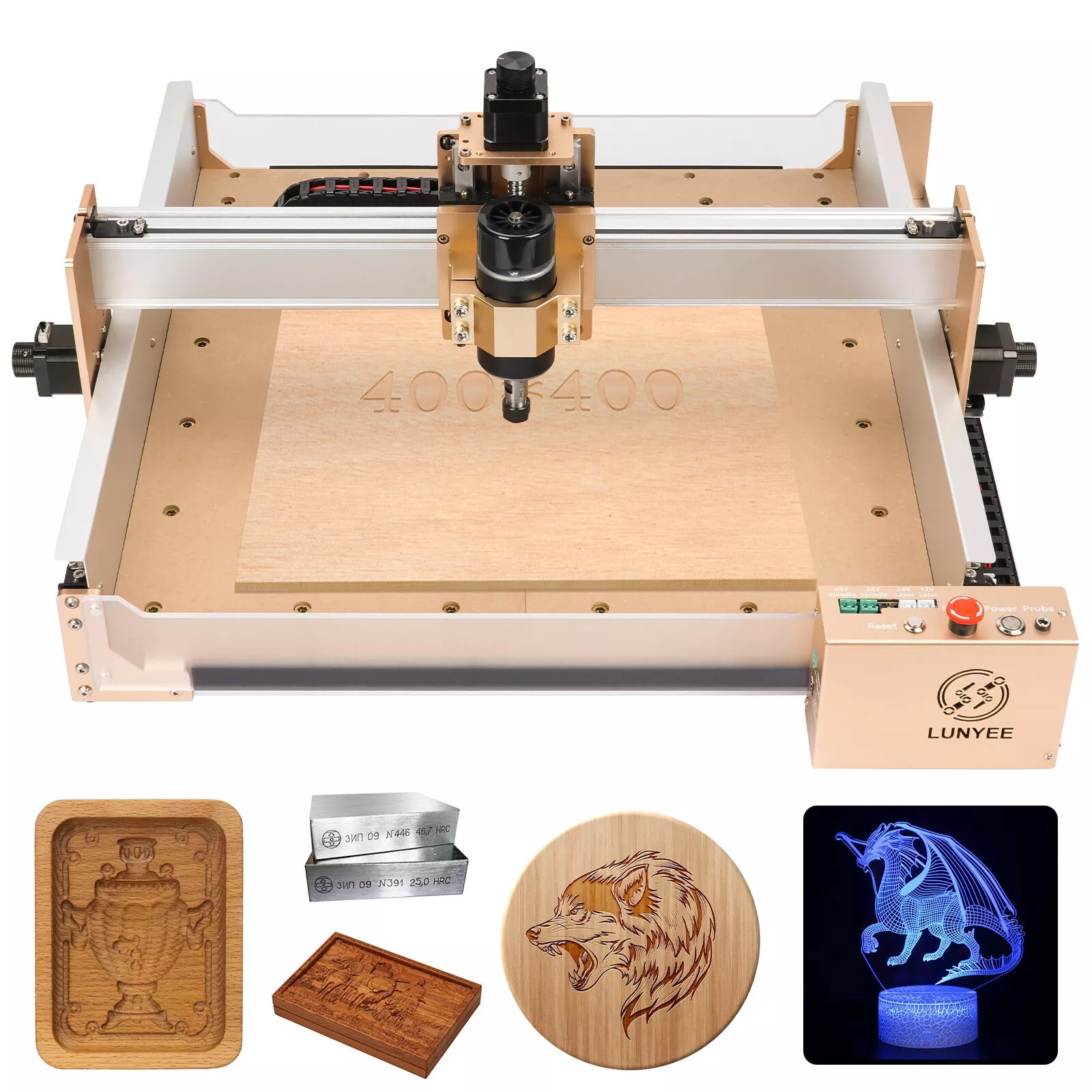

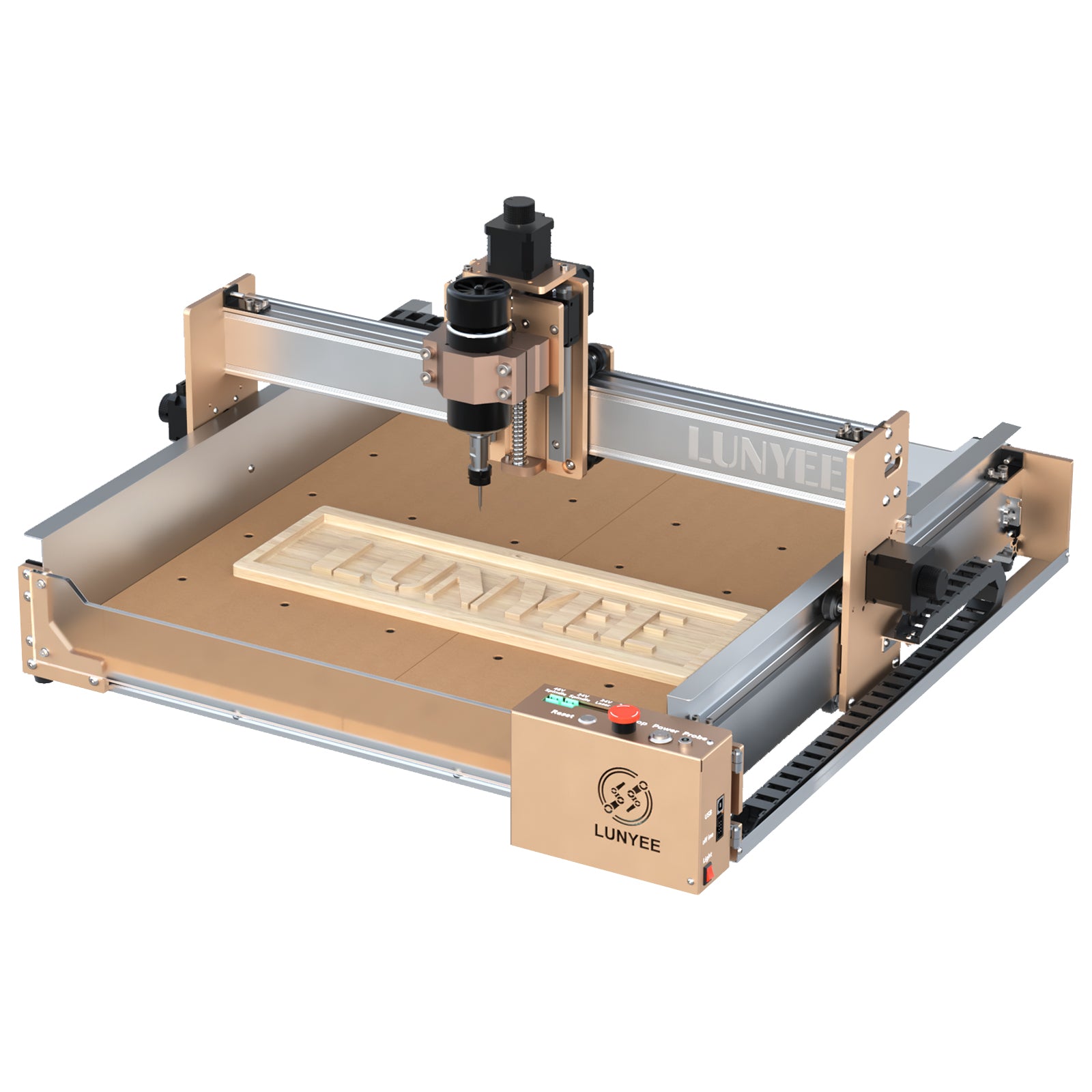

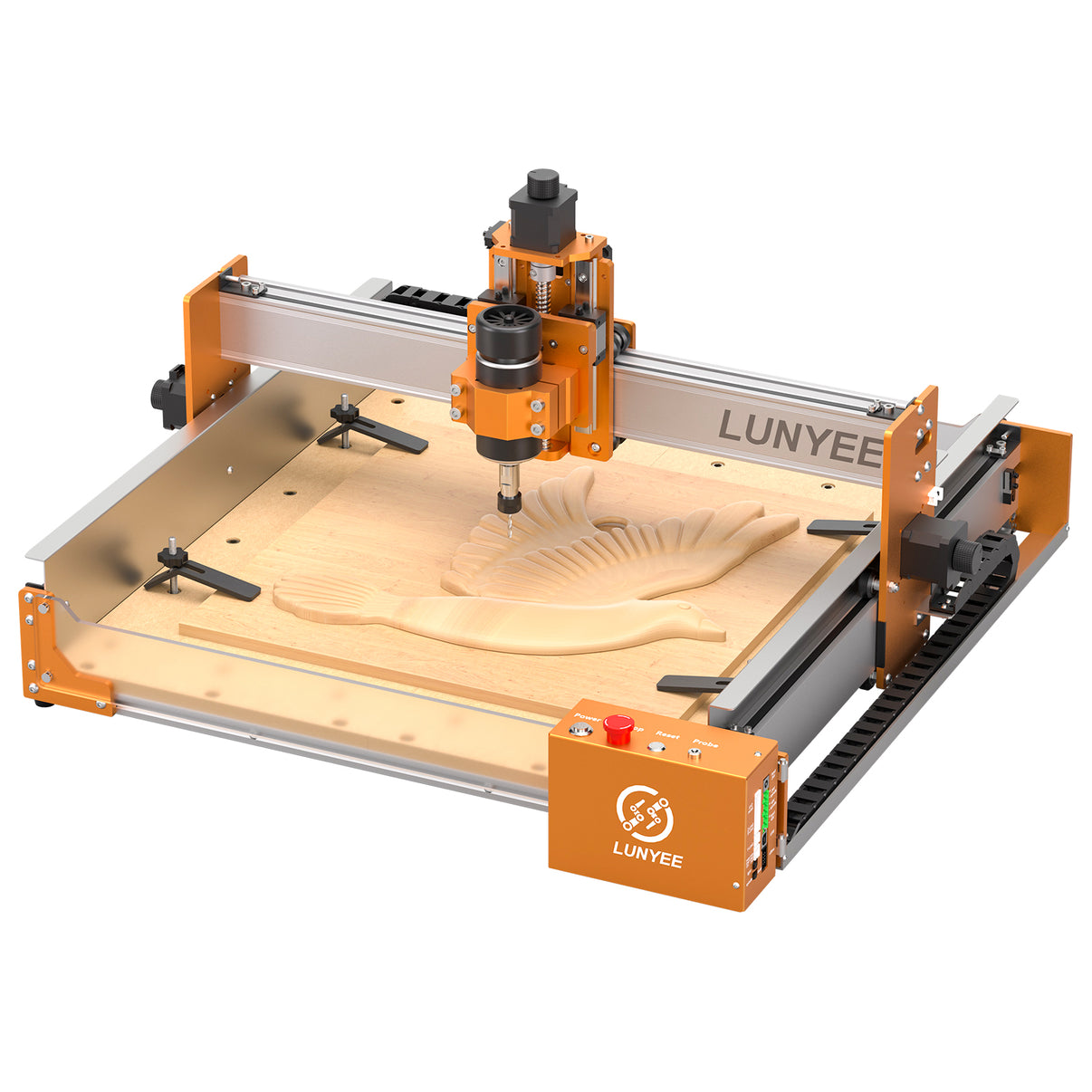

LUNYEE 4040 Pro CNC Machine 100W All-Metal CNC Router

1 / 1

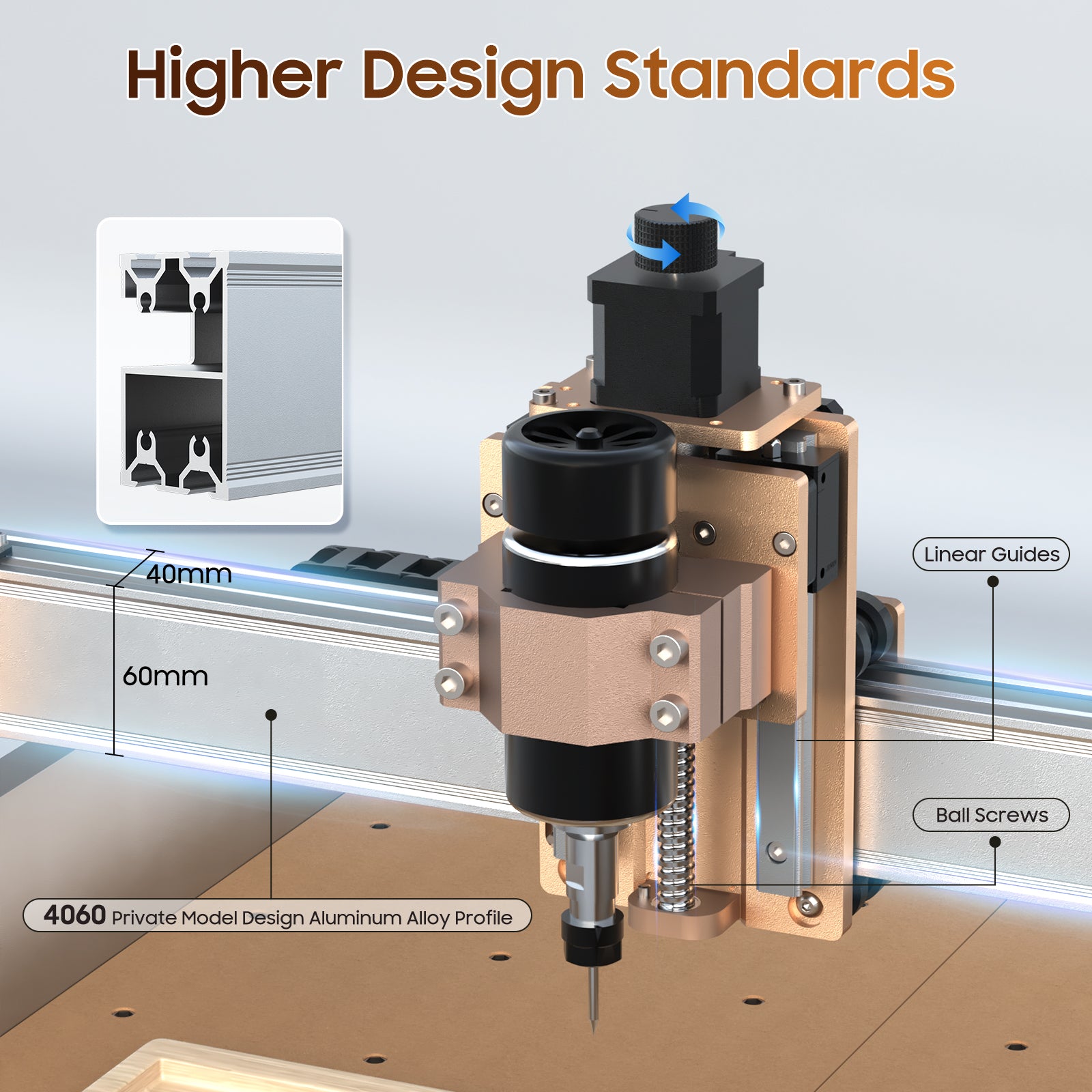

Precision You Can See in Every Cut

The LUNYEE 4040 PRO features a 40 × 60mm thickened X-axis profile for greater structural rigidity, while the Z-axis is equipped with dual HG-15 linear rails and a precision 1204 ball screw for smoother motion and more precise control under load. Together, these components help maintain accuracy of up to ±0.05mm. Whether you're doing deep 3D carving or fine metal work, the machine stays stable throughout the job for more consistent, professional-quality results.

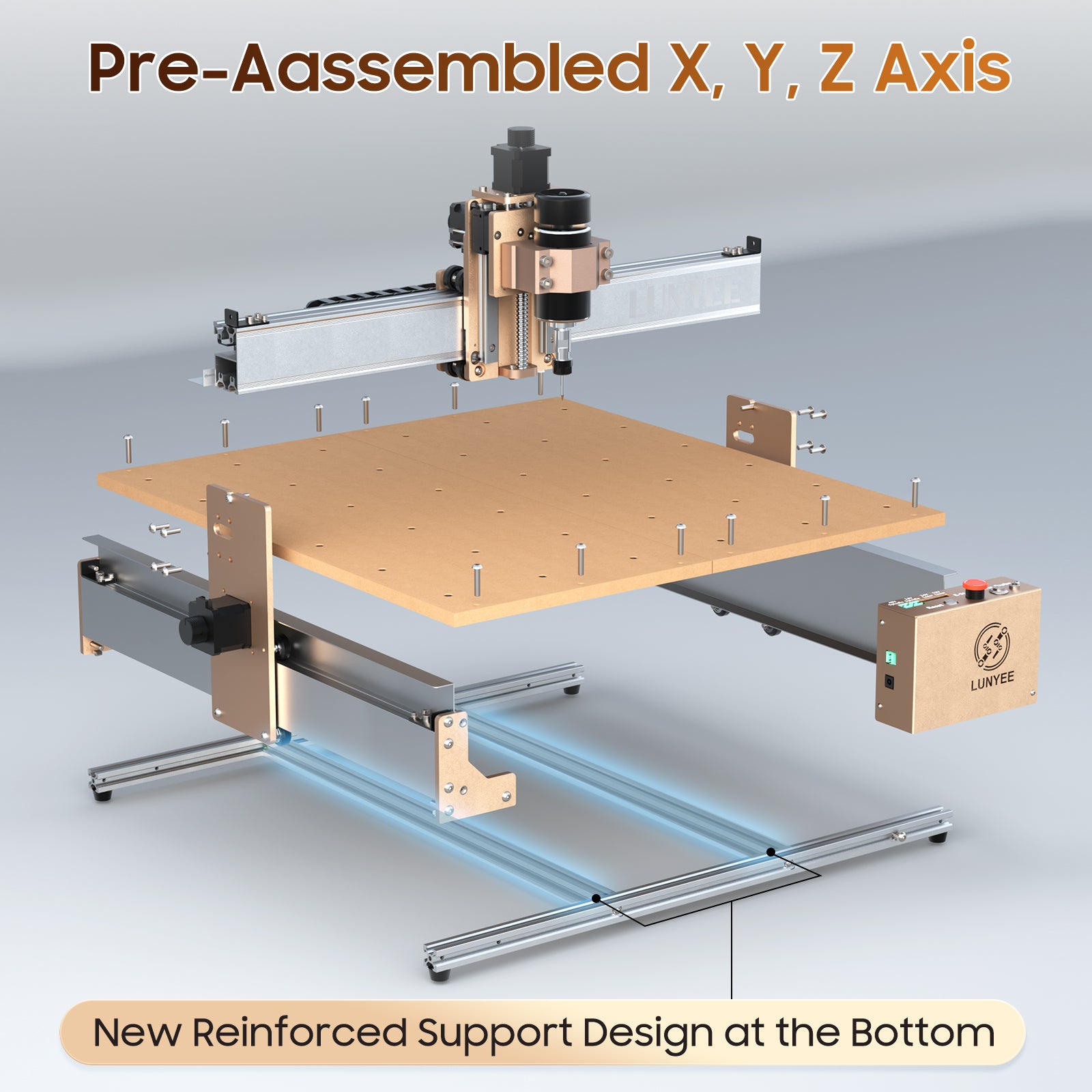

A Reinforced Frame, Built for Greater Stability

The LUNYEE 4040 PRO features a fully reinforced frame, built around an ultra-thick aluminum X-axis beam and additional base support components for a stronger, more rigid foundation. This upgraded structure helps minimize work platform flex and reduce high-frequency vibration during heavy cuts.
As a result, the machine stays more stable under load. You will get better cutting control, more consistent performance, and cleaner results across demanding jobs.

Smarter Control, Made Simple

The 4040 PRO comes equipped with an industrial-grade compact aluminum controller box that makes CNC control simpler, safer, and more efficient. Powered by a 32-bit open-source control board, it delivers faster processing for smoother motion and more advanced toolpaths, while the intuitive layout keeps everyday operation clear and easy.

Flawless Finishes | X-Axis Integrated LED Lighting

Never work in the dark again. The LUNYEE 4040 PRO features sleek, hidden LED light strips integrated directly into the X-axis beam. This brilliant, glare-free illumination casts a clear light directly onto the working area, allowing you to monitor intricate carvings, verify toolpath accuracy, and inspect material alignment in real-time. Whether you are working late or need to check fine details, this thoughtful lighting design enhances both operational safety and creative precision.

More Materials. More Ways to Create.

With a rigid structure and a powerful 100W spindle, this 4040 CNC machine gives you the ability to machine aluminum, copper, acrylic, hardwood, and PCB boards with greater confidence and control. So as your projects become more advanced, your machine is ready to keep up. Also you can switch to an optional laser module for custom branding, leather work, and detailed engraving on glass and stone. One machine, more materials, and more ways to turn ideas into finished work.

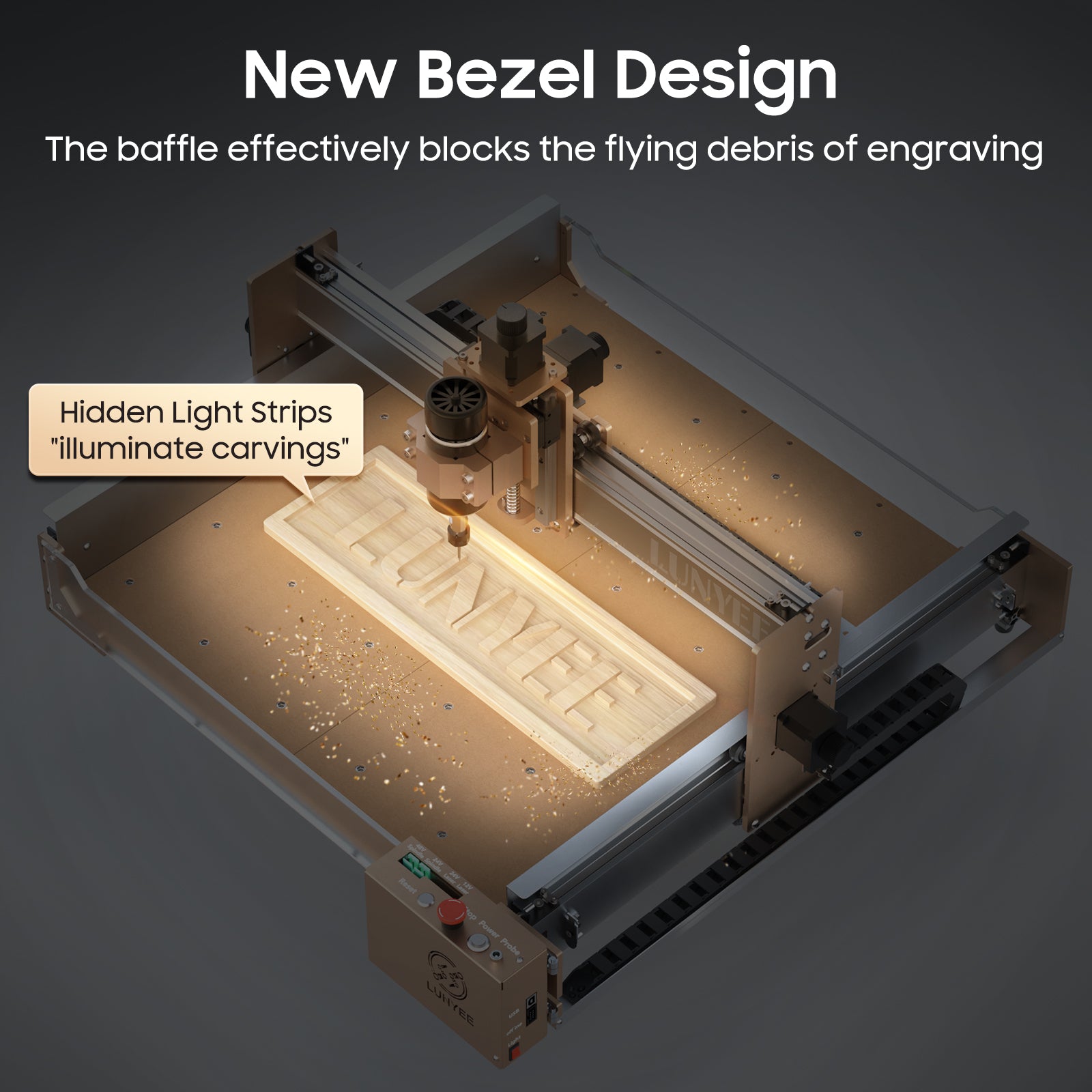

Clean Workspace, Unlimited Length | Removable Magnetic Baffles

Keep your workshop spotless without sacrificing capability. The LUNYEE 4040 PRO features a Magnetic Acrylic Dust Baffle system that effectively blocks flying debris and wood chips during carving. Need to process extra-long materials, The front and rear baffles can be snapped off in seconds thanks to the magnetic mount, creating a pass-through design that allows you to feed oversized boards through the machine. Combined with the rotatable control box, you get total flexibility for material loading and a significantly easier cleanup process.

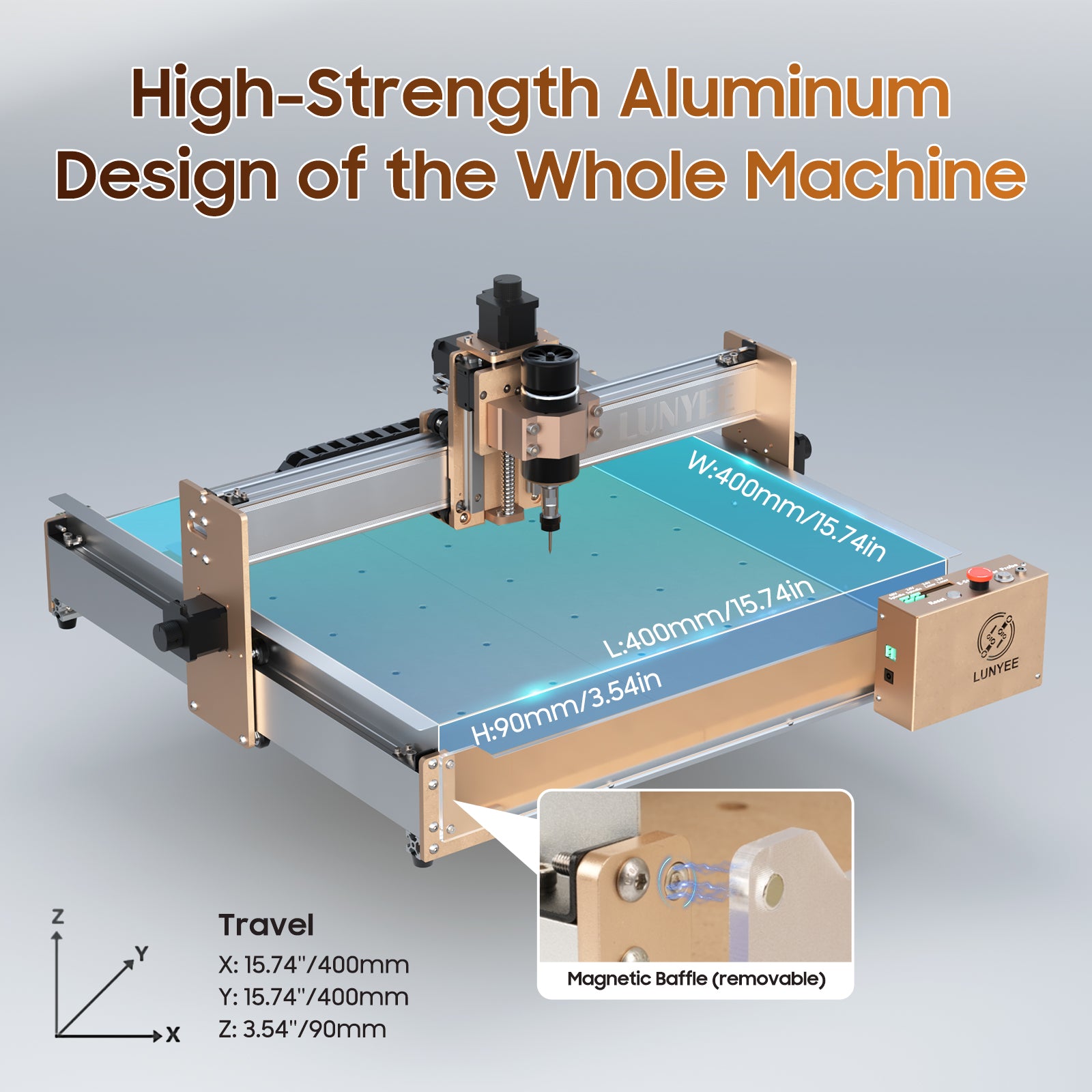

Unlimited Creativity | Spacious 400x400mm Area with Enhanced 90mm Z-Travel

Bring your grandest designs to life without boundaries. The LUNYEE 4040 PRO offers a generous 400 x 400mm (15.74" x 15.74") working area, perfectly sized for everything from custom home decor to large-scale signage. With an upgraded 90mm (3.54") Z-axis travel, this machine handles thicker stock and taller workpieces with ease, providing the clearance needed for complex 3D carvings. For total peace of mind, 6 integrated limit switches monitor every axis (X/Y/Z), preventing machine crashes and ensuring a safe, worry-free engraving experience every time.

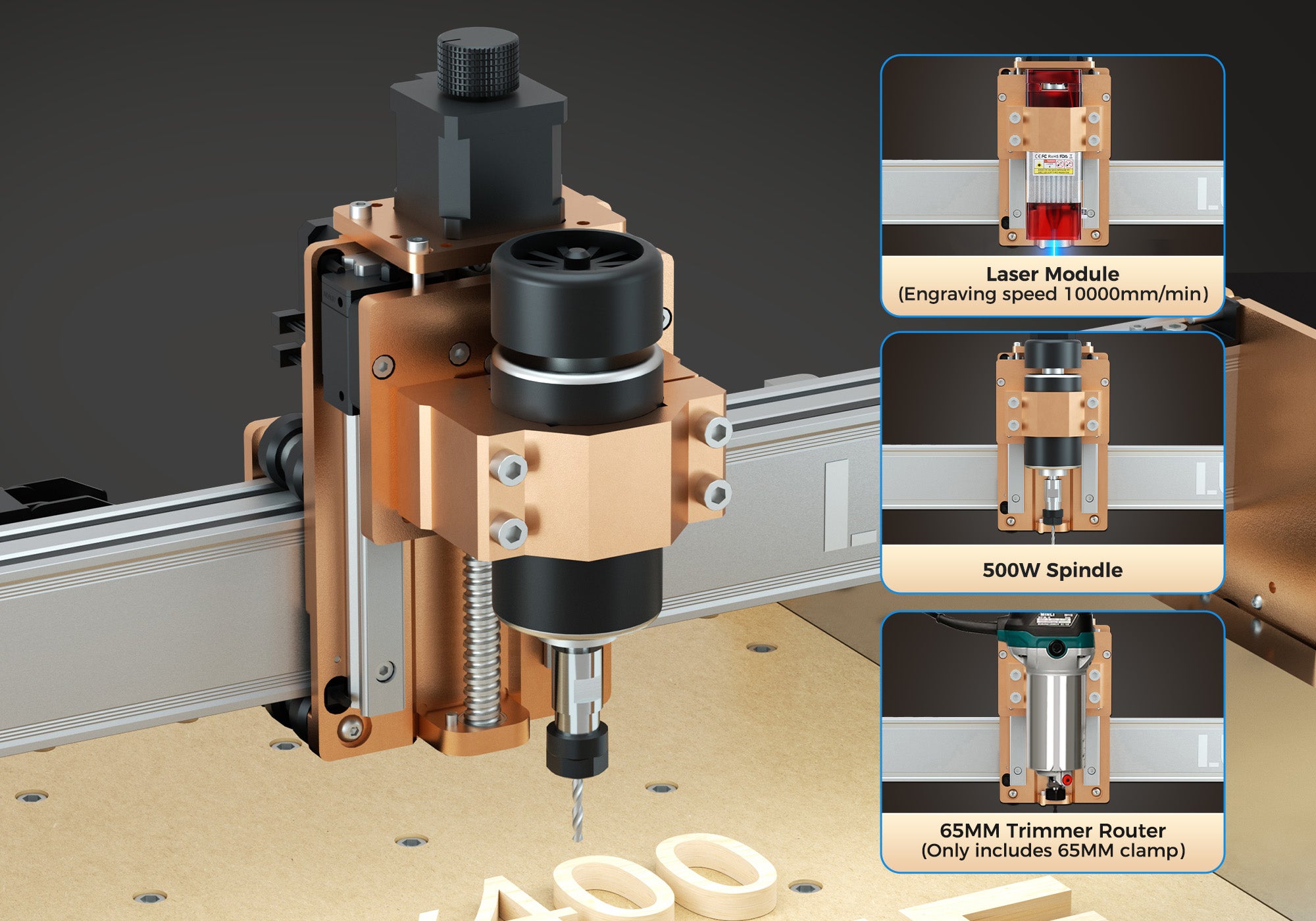

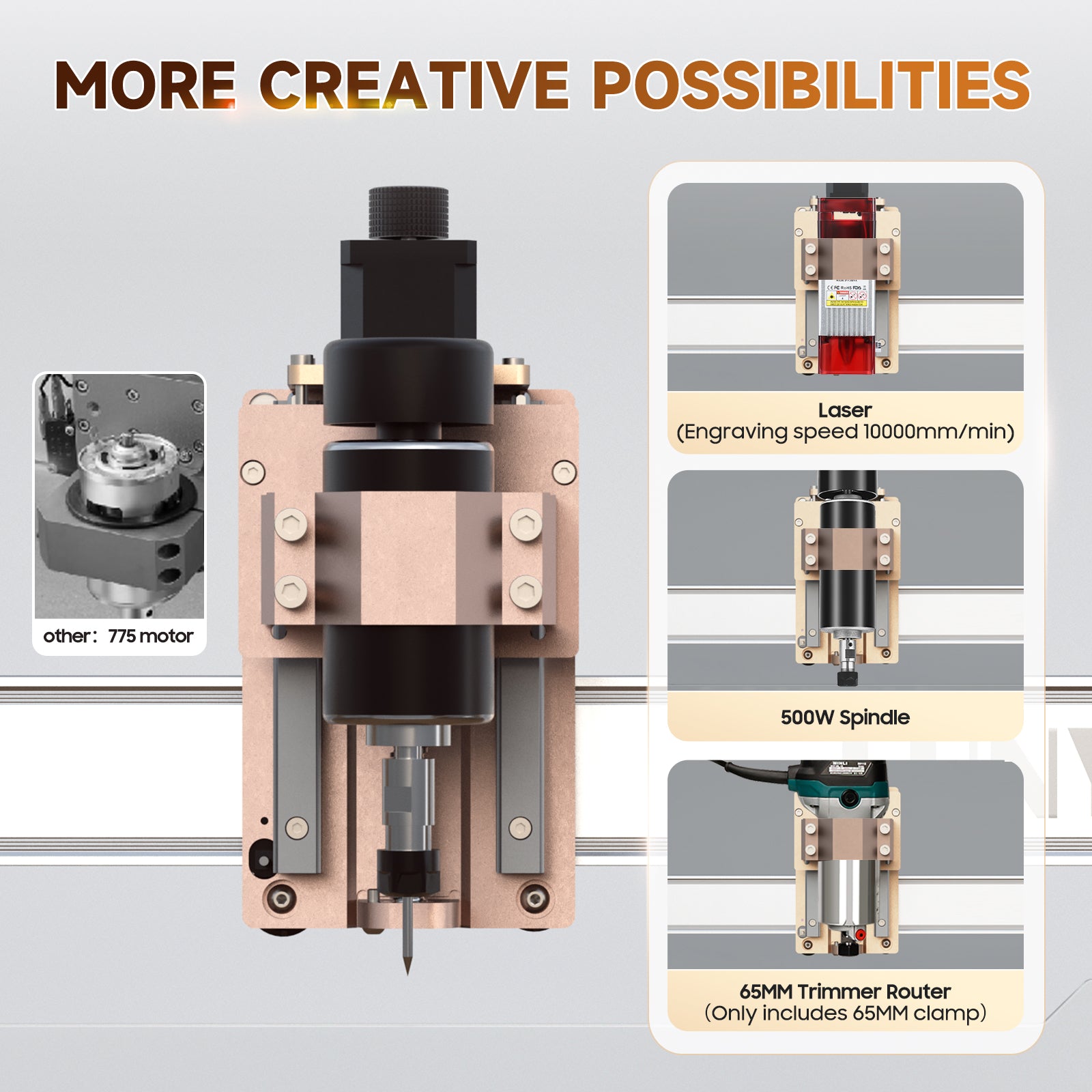

One Machine, Endless Upgrades | 52mm & 65mm Dual Spindle Clamps

Future-proof your workshop with the LUNYEE 4040 PRO’s unmatched compatibility. Equipped with both 52mm and 65mm precision clamps, this machine seamlessly integrates with a vast range of tools. Whether you are using the standard 500W Spindle for delicate work, upgrading to a high-powered 65mm Trimmer Router (710W) for heavy-duty milling, or mounting a high-speed Laser Engraving Module (up to 10,000mm/min) for intricate branding, the 4040 PRO adapts to your needs. This versatile platform allows you to switch between CNC routing and laser engraving in minutes, making it the only tool you’ll ever need for multi-material mastery.

Full Creative Control | Compatible with Industry-Standard Open-Source Software

Experience a truly open workflow with the LUNYEE 4040 PRO. Powered by the high-performance 4-Axis 5.0 GRBL 1.1f control board, this machine integrates seamlessly with the world’s most popular CNC and laser software. Whether you prefer UGS (Universal G-Code Sender) and Candle for precision routing, or Lightburn for advanced laser projects, the 4040 PRO adapts to your favorite tools. With full cross-platform support for Windows, Linux, and Mac, you can design and carve on the hardware you already own, ensuring a smooth transition from digital concept to physical masterpiece.

Specifications

Product	LUNYEE 4040 Pro	Other 4040
Frame Material	Aluminum & steel rail structure	Aluminum+Acrylic
Max Speed (mm/min)	5000	2000
Spindle Power	100W	775 60W
Spindle Speed	0 - 10,000 RPM	/
Running Accuracy	≤ ±0.05mm	±0.1mm
Drive System	Z-axis: Dual HG15 Linear Guides & 1204 Ball Screw	Belt (X,Y)+Lead screw (Z)
Stepper Motor	Nema 17 (42 series) 1.68A, 0.55N.m torque	Nema 17
Working Area	15.75“ x 15.75” x 3.54“ (400 x 400 x 90mm)	400 × 400 × 60mm
Control Board Compatibility	GRBL 1.1f Compatible (32-bit ARM Processor)	Grbl
MCU	32-Bit	/
Software	GRBL Firmware, e.g. Easel, Candle,UGS, Fusion360, LaserGRBL, LightBurn	GRBL-based software
Compatible Operating Systems	Windows XP/7/8/10/11, Linux, Mac OS	Windows
Weight	17kg (38 lb)	/
Spindle Mount	52mm & 65mm & 69mm	52mm
Power Supply	AC110/230V (Switch Power)	AC110
Limit Switches	6-Way (X±, Y±, Z±)	/
Safety Features	Dedicated Emergency Stop (E-Stop) Button	✔
Offline Control	Supported (via Optional Offline Controller)	/
Laser Support	Supports PWM 12V/24V Laser Modules	/

Support:

One-year Warranty For Free

Compatible with GRBL-Base CAM/CNC Software

What's in the box

Package:

XY Axis Base Assembly & X-axis Assembly
Z-axis Assembly
Spindle & Spindle Motor Mount
Control box
Power Supply
Power Cord
USB Cable
USB Drive
Cable drag chains
Emergency Stop (E-Stop) Button
Limit Switch
Z-Probe Kit
ER11 1/8” Collet
Clamp Kit
Carving Router Bits Set
Brush
Steel rule
Synthetic Grease
Screws & Cable Tie Allen Wrench
User Manual
