Real-World Test: Lunyee 3018 Pro Max Desktop CNC on Metal, Acrylic, and PCB

Written by Wyatt Walker

When I cleared space on my bench for the Lunyee 3018 Pro Max, I wasn’t expecting it to replace a full-size mill. I’ve used larger machines before, so I knew what a compact 3018 CNC can and can’t realistically do. My goal wasn’t decorative engraving—I wanted to see if it could handle practical work: wood panels, acrylic parts, small aluminum brackets, and even some PCB milling, without every job turning into constant adjustment and troubleshooting. After a few weeks of regular use, I have a clearer picture of where it fits.



Setup and First Impressions

Assembly was straightforward. The frame components line up logically, and within a couple of hours I had the gantry squared and the wiring in place. I paid extra attention to cable routing and limit switches—small alignment issues tend to show up quickly on machines this size.

Once everything was tightened and leveled, the aluminum frame felt solid for a hobby-class desktop CNC. It doesn’t have the weight or rigidity of a cast-iron machine, but it doesn’t feel flimsy either. Axis movement was smooth right away, and jogging the machine felt predictable. That first test told me the basics were there—it just needed proper setup to perform well.





Mechanical Feel and Everyday Use

The T-slot table makes workholding simple. The included clamps work fine for wood and aluminum, and double-sided tape is enough for lighter acrylic sheets. The axes run on lead screws with linear bearings, and under light to moderate loads backlash hasn’t been a noticeable issue in my use.

Engraving jobs run consistently, and light milling operations feel stable as long as cuts are kept reasonable. Over time, the machine starts to feel familiar rather than delicate. It doesn’t demand constant attention once you understand its limits.





Aluminum: Dialing It In

Wood is forgiving; aluminum isn’t. On my first aluminum pass, I noticed a change in sound as the cutter engaged. It wasn’t dramatic, but it was enough to make me pause and rethink the settings.

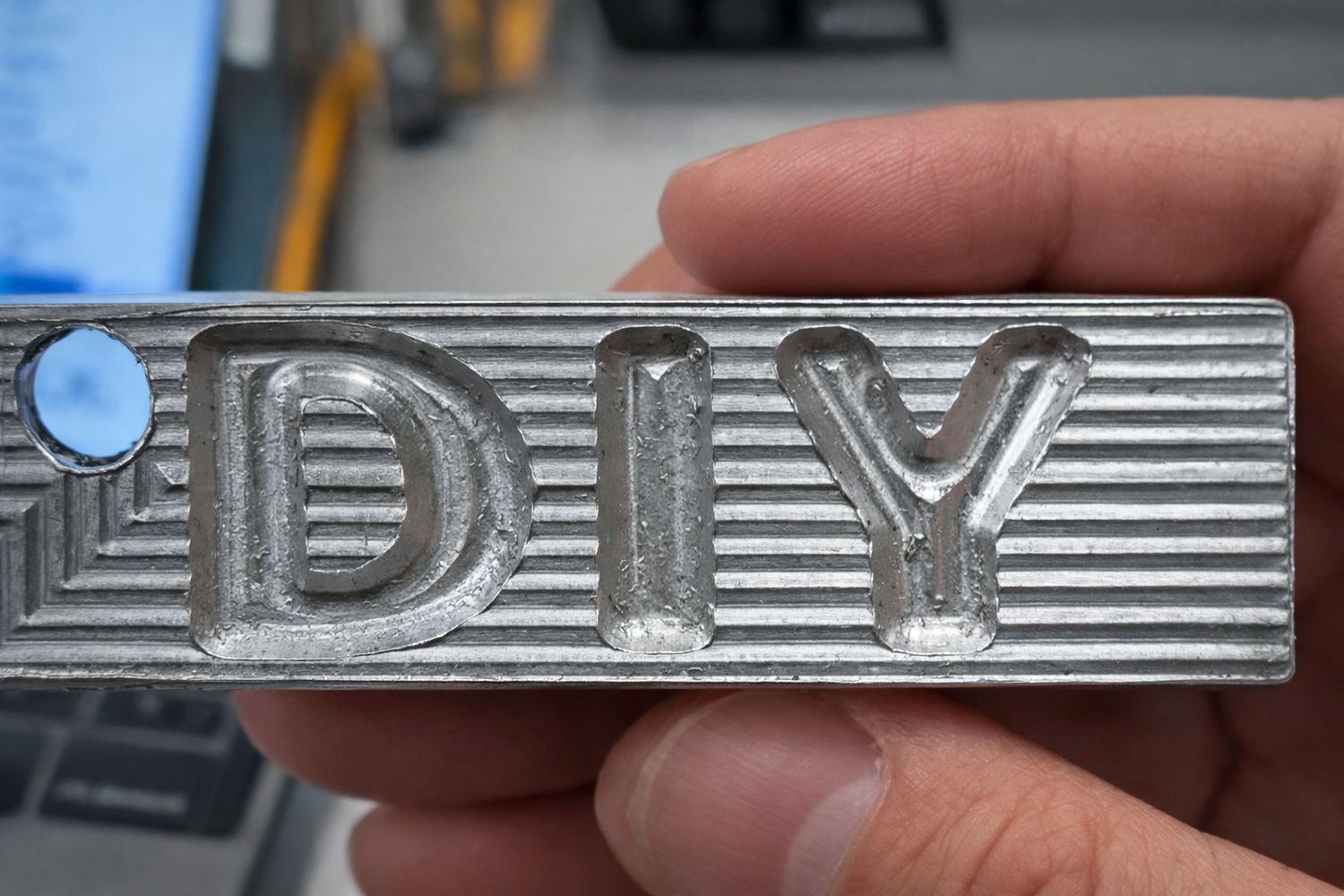

Reducing depth per pass and backing off the feed rate made an immediate difference. The vibration settled down and the cut sounded cleaner. With conservative parameters, aluminum becomes manageable. I wouldn’t recommend aggressive material removal, but for light brackets, small plates, and enclosure parts, it’s capable. Surface finish was clean, and parts measured within a few hundredths of a millimeter when everything was set up correctly.

It rewards patience more than force.





PCB Milling: Setup Matters Most

PCB milling requires more preparation than aluminum. There’s very little margin for error—too deep and isolation traces are ruined. Before running my first board, I spent extra time on surface leveling and height mapping in GRBL.



Using a 0.2 mm engraving bit, the isolation paths came out clean on the first test board. No broken traces, no unexpected gouging. Once I confirmed the Z-height consistency, the process became repeatable. For hobby electronics and prototype boards, the precision is there, but it depends heavily on careful setup and conservative settings.





Acrylic and Fine Detail Work

Acrylic took a bit of tuning. My first attempt left slightly cloudy edges, which usually means spindle speed and feed rate aren’t balanced. After adjusting the parameters, edges became clearer and required only light finishing.

Engraved details stayed sharp, and dimensional accuracy was consistent across multiple pieces. Compared to 3D printing, CNC-cut acrylic produces cleaner edges and tighter tolerances, which makes a noticeable difference for panels and small enclosures.







Software and Workflow

The Lunyee 3018 Pro Max runs GRBL firmware and works with Candle or Universal G-code Sender. I mostly used a PC connection, especially for larger or more complex jobs. The offline controller works for simple operations, but managing detailed toolpaths is easier on a full screen.

Most of the learning curve isn’t mechanical—it’s in CAM settings. Feed rate, depth per pass, and tool selection make more difference than most hardware adjustments. Once I saved reliable profiles for wood, aluminum, and PCB milling, the overall workflow became straightforward: design, generate toolpaths, simulate, and run the job.

When something went wrong, it was usually a parameter issue rather than a mechanical one.





Noise, Flex, and Practical Limits

Cutting aluminum is noticeably louder than wood, though still manageable in a garage environment. An enclosure would help contain both noise and debris.

Heavy cuts can introduce slight flex, which is expected at this size and weight. Understanding those limits is important. This isn’t an industrial machine, and it performs best when used within its intended range. As long as cuts are reasonable, results are consistent and repeatable.





Final Thoughts

After extended use, I see the Lunyee 3018 Pro Max as a practical entry-level CNC for makers who want to move beyond basic engraving. It’s suitable for custom panels, small enclosures, light aluminum parts, and hobby PCB work.

It won’t replace larger equipment, and it’s not meant to. What it offers is approachable CNC capability in a compact format. With proper setup and realistic expectations, it produces reliable, functional parts. It’s not about raw power—it’s about steady, predictable performance within a clear working range.

Used thoughtfully, it earns its space on the bench.
