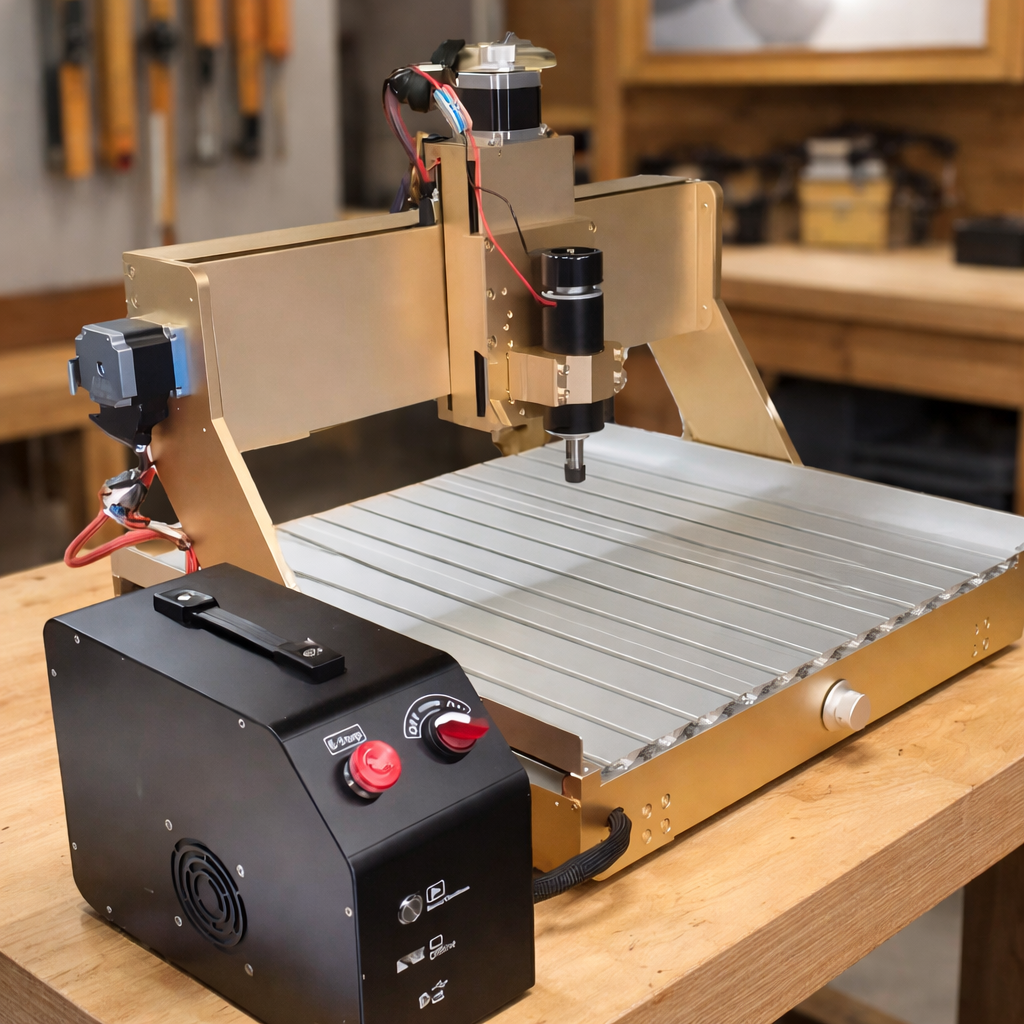

Lunyee 4040 Turbo Desktop CNC Router Review: Hands-On Testing for Makers and Beginners

Written by Logan Pierce

I recently spent some hands-on time with the Lunyee 4040 Turbo desktop CNC router, a machine aimed at makers, hobbyists, and beginners looking for a capable CNC solution without stepping into industrial-grade territory. On paper, it promises a rigid aluminum frame, a relatively large working area for its class, and an approachable setup process.

In this review, I wanted to see how those claims hold up in real-world use—especially for common desktop CNC routing and engraving projects that most hobby users actually care about.



First Impressions and Assembly

Right out of the box, the Lunyee 4040 Turbo CNC router made a strong first impression. The base arrived fully assembled, and the frame components felt heavy and well-built. The overall construction gave the machine a sturdy, confidence-inspiring feel, which is something I always look for in a desktop CNC.

Lunyee also includes a small selection of router bits in different sizes. It’s a simple addition, but a helpful one—especially for beginners who want to start CNC routing or engraving without immediately buying extra tooling.

Assembly itself was straightforward. The X and Z gantry mount onto the Y-axis table with only a few screws, and all the wiring was clearly labeled. Even for a first-time CNC user, the process felt intuitive. Cable routing could be a bit cleaner, and my unit had a minor cosmetic scratch from shipping, but neither issue affected rigidity or machine performance.





Build Quality and Design

Once fully assembled, the 4040 Turbo desktop CNC felt solid for a benchtop machine. The aluminum gantry and Z-axis provide good stiffness, and protective covers over key motion components help keep dust out during CNC routing and engraving.

One detail I appreciated was the Z-axis design, which allows flexible tool mounting. Switching between the included 500 W spindle and other compatible tools was simple. A mounting bracket is included, and the control box provides power outlets for running an external router directly.

Manual handwheels on each axis are a small but practical feature. I found them genuinely useful for positioning the spindle when the machine was powered off—something that often gets overlooked on desktop CNC routers.

Visually, the gold-colored finish stands out. While it doesn’t affect performance, it gives the Lunyee 4040 Turbo a distinctive look compared to the more common black or silver machines in this category.





Real-World Testing: Desktop CNC Performance

To evaluate real-world performance, I worked on two typical desktop CNC projects: a 2.5D relief carving and a PCB engraving job. These represent light-duty tasks that hobbyists and makers frequently tackle with a desktop CNC router.

2.5D Relief Carving Test

The first project was a detailed 2.5D relief carving. I designed the pattern in CAD, exported it as a DXF file, and imported it into CAM software. I used Easel by Inventables, which comes pre-configured for the Lunyee 4040 Turbo, making toolpath setup quick and straightforward.



The machine produced a clean, precise carving with sharp edges and well-defined contours. The finished relief showed consistent surface quality, with clean depth control and clearly defined details across the piece. For a desktop CNC router in this class, the results were impressive and reliable.





PCB Engraving Project

Next, I engraved a small PCB. After preparing the layout in standard PCB design software, I imported it into Easel for machining. The 4040 Turbo CNC router executed precise cavity and trace cutting, leaving clean results without damaging the surrounding material.



This test highlighted the machine’s accuracy and stability when handling small, detailed engraving work. Setup and workflow were smooth, and cutting results remained consistent throughout the job.

Overall, while this machine is not designed for heavy metal cutting or production workloads, it performed very well for light-duty CNC routing, engraving, relief carving, plastics, and small DIY projects.





Key Strengths of the Lunyee 4040 Turbo

One of the biggest strengths of the Lunyee 4040 Turbo desktop CNC router is balance. The frame feels rigid for its size, the aluminum T-slot table makes workholding and fixturing easy, and practical design details—such as dust protection around motion components—improve everyday usability.

Its footprint fits comfortably in smaller workshops, garages, and home maker spaces. Manual axis controls, flexible spindle options, and broad CAD/CAM software compatibility make daily CNC work more approachable, especially for users still learning CNC workflows.





Limitations to Consider

Like any desktop CNC machine, the 4040 Turbo has clear limitations. Cable management could be cleaner, and including an offline controller would improve convenience for some users.

Most importantly, this CNC router is not intended for heavy metal cutting or production-level workloads. It works best for light-duty CNC routing, engraving, PCB work, woodworking, plastics, and small-batch projects.





Final Verdict: Is the Lunyee 4040 Turbo Worth It?

The Lunyee 4040 Turbo is a solid, beginner-friendly desktop CNC router that offers enough rigidity and flexibility to grow alongside your skills. It strikes a practical balance between size, capability, and ease of use, making it well-suited for CNC woodworking, engraving, PCB projects, and general maker applications.

In a crowded desktop CNC market, pricing and availability always matter. Based on my hands-on experience, however, the Lunyee 4040 Turbo stands out as a reliable option for makers who want a capable CNC machine without the complexity, cost, or footprint of larger systems.
