1. Understanding the "Nervous System" of Your CNC Router: The Importance of the Drive System



Your CNC router's ability to precisely move its cutting tool and carve complex 3D shapes is all thanks to its sophisticated drive system. A complete drive system typically includes a motor (providing power) and a motion transmission mechanism (converting that power into linear motion). Understanding how different combinations of these two parts affect machine performance is your first step in the buying process.



2. The Motor Debate: Stepper Motors vs. Servo Motors



Your choice of motor directly impacts your CNC router's speed, accuracy, and stability.



2.1 Stepper Motors: The Economical Entry-Level Choice



• How They Work: Stepper motors rotate in fixed angular increments (or "steps") when they receive electrical pulses. They are "open-loop" systems, meaning the motor executes commands without feedback to confirm its actual position.

• Pros:

  • Lower Cost: Stepper motors and their drivers are generally much more affordable than servo systems, making them ideal for CNC hobbyists or small workshops on a budget.

  • Simple Control: Easy to set up and program, making them quick to learn.

  • Holding Torque: They can maintain torque when stationary, which helps with workpiece positioning.

• Cons:

  • Can Lose Steps: At high speeds or under heavy loads, stepper motors can "lose steps," leading to machining errors that they can't automatically correct (an inherent drawback of open-loop systems).

  • Decreased High-Speed Performance: As RPM increases, their torque drops significantly, affecting machining efficiency.

  • Noise and Heat: They typically generate more noise and heat during operation.

• Best For: If you primarily process soft materials like wood, plastics, or PCBs, don't require extreme processing speeds, and have a limited budget, stepper motors will be perfectly adequate.



2.2 Servo Motors: The High-Performance, High-Precision Choice



• How They Work: Servo motors work in conjunction with an encoder (which provides real-time position feedback) and a servo drive, forming a "closed-loop" system. The drive constantly compares the commanded position with the actual position and adjusts the motor's output in real-time, ensuring extreme precision and stability.

• Pros:

  • High Precision and Repeatability: Closed-loop control eliminates the possibility of lost steps, ensuring highly accurate machining every time.

  • High Speed and High Torque: They maintain strong torque output across their entire speed range, allowing for rapid acceleration/deceleration and efficient machining.

  • Smooth and Quiet Operation: Significantly less noisy and vibrate less than stepper motors, leading to a more comfortable working environment.

  • Strong Overload Capacity: Better at handling sudden load changes.

• Cons:

  • Higher Cost: Servo systems are typically a significant investment.

  • Complex Control: Setup and tuning may require more specialized knowledge.

• Best For: If you're looking for ultimate precision, high-speed machining, need to process hard materials like metal, or plan for large-scale, continuous production, then servo motors are the ideal "heart" for your CNC router.



3. Motion Transmission: The Key to Converting "Power" into "Movement"



While motors provide rotational power, it's the motion transmission mechanism that enables your CNC router to move linearly along the X, Y, and Z axes.

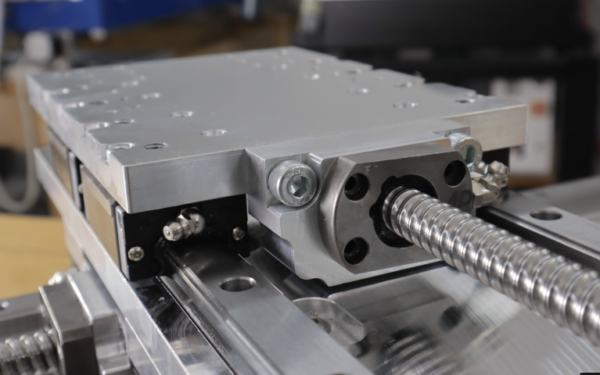

3.1 Ball Screws: Precision and Efficiency Personified



• How They Work: Consisting of a threaded rod and a nut containing recirculating steel balls, ball screws efficiently convert rotational motion into linear motion. The rolling friction of the balls is minimal.

• Pros:

  • High Precision: Manufactured to high tolerances, providing very accurate positioning.

  • Low Friction, High Efficiency: Minimal energy loss, low heat generation.

  • Low Backlash: Preloading can eliminate or significantly reduce backlash, ensuring precise reversal of motion.

  • Long Lifespan: Low wear and tear, and with proper maintenance, they can last a long time.

• Cons:

  • High Cost: Complex manufacturing processes make them expensive.

  • Length Limitations: For very long screws, "whip" effect can occur, affecting accuracy and stability.

• Best For: The preferred choice for small to medium-sized CNC routers, especially for the X, Y, and Z axes where high precision is paramount, such as engraving molds, precision parts, or jewelry.



3.2 Rack and Pinion: The Solution for Large Sizes and High Speeds



• How They Work: A gear (pinion, connected to the motor) rolls along a straight toothed bar (rack), creating linear motion.

• Pros:

  • Suitable for Long Travel: Racks can be easily joined, making them ideal for the X and Y axes of large CNC routers (e.g., woodworking CNCs, sign-making CNCs).

  • High Load Capacity: Capable of handling significant loads.

  • High Speed: Theoretically can achieve very high travel speeds.

  • Relatively Lower Cost: For large machines, they are more economical than equivalent lengths of ball screws.

• Cons:

  • Lower Relative Precision: Generally less precise than ball screws and more prone to backlash.

  • Noise: Can generate considerable noise during operation.

  • Maintenance: Tooth surfaces require regular lubrication and cleaning.

• Best For: Commonly found on large gantry-style CNC routers that require a large working area and high speed, such as for custom furniture, doors, windows, and large advertising signs.



3.3 Lead Screws / ACME Screws: The Budget-Friendly Entry-Level Option



• How They Work: Similar to ball screws, but motion is transmitted through sliding friction between the threaded rod and nut.

• Pros:

  • Lowest Cost: The most economical drive option, suitable for DIY CNC projects with minimal budgets.

  • Self-Locking: Can offer some degree of self-locking in certain situations.

• Cons:

  • Low Efficiency, Fast Wear: Sliding friction leads to significant energy conversion into heat, fast wear, and a shorter lifespan.

  • Poor Accuracy: Backlash increases rapidly with wear, reducing precision.

  • Slow Speed: Not suitable for high-speed motion.

• Best For: Primarily used for entry-level or very low-budget small engraving machines or very light-duty applications where precision and speed are not critical.



3.4 Timing Belts: The Quiet and Flexible Choice



• How They Work: Power is transmitted via a toothed belt and pulleys.

• Pros:

  • Low Noise: Very quiet operation.

  • Low Cost: Economical and easy to install.

  • Flexibility: Suitable for applications requiring fast, light-duty movement.

• Cons:

  • Limited Accuracy: Belts can stretch over time, leading to reduced accuracy and increased backlash.

  • Low Load Capacity: Not suitable for heavy-duty cutting or high cutting forces.

• Best For: Commonly found in laser engravers, 3D printers, and some very small, light-duty CNC routers.



4. How to Make the Best Choice?



• Define Your Primary Applications and Materials: What materials will you mostly process? What are your requirements for machining precision and speed? This forms the basis for all other decisions.

• Set Your Budget: Your investment budget will directly influence the types of drive systems and motors you can consider.

• Consider Workspace Size: For large work tables, rack and pinion might be more cost-effective and practical; smaller machines are generally better suited for ball screws.

• Future Upgrade Potential: Think about the machine's expandability and upgrade potential. This can save you trouble down the line as your needs evolve.

• Consult Professionals: If you're still unsure, don't hesitate to consult CNC router suppliers or experienced professionals. They can offer tailored advice based on your specific requirements.
