1. Understanding the CNC Controller: The Machine's "Brain" and "Nerve Center"



The CNC controller is responsible for receiving and interpreting your G-code (machine instructions), then translating them into signals that drive the motors, precisely controlling the tool's path in three-dimensional space. It doesn't just manage motion; it can also control spindle speed, cooling systems, tool changes, and various other functions. Choosing the right controller means choosing an intelligent core that suits your operating style and future expansion goals.



2. A Look at Main CNC Controller Types



Common CNC controllers on the market can generally be categorized as follows:



2.1 PC-Based Controllers: The Powerful and Flexible Combination



These controllers require a computer connected to the CNC machine to run the control software.

• Representative Software:

  • Mach3/Mach4: Long-standing and powerful, supporting various hardware interfaces (e.g., parallel port, USB, Ethernet). They boast a large user community and a wealth of plugins.

  • LinuxCNC (EMC2): Open-source and free, based on the Linux system, known for its excellent motion control precision and stability. It's particularly favored by users requiring high real-time performance.

  • UCCNC: Similar in functionality to Mach3 but with a more modern interface and improved stability, supporting USB and Ethernet connections.

• Pros:

  • Powerful and Flexible: Rich software features, highly customizable, easy to upgrade and add new functions.

  • Intuitive Graphical Interface: Often provides a user-friendly interface for easy operation and monitoring.

  • Convenient Debugging and Diagnostics: Easy parameter adjustment and troubleshooting via the computer.

• Cons:

  • PC Dependence: Requires a dedicated or semi-dedicated computer, which might take up workspace.

  • Potential OS Influence: Windows systems might have real-time performance issues (though Mach3/Mach4 address this with dedicated drivers) and are susceptible to viruses or system updates.

  • Requires Driver Board: In addition to the software, a compatible hardware driver board is needed to connect the computer to the motor drivers.

• Ideal For: Professional CNC hobbyists, small to medium-sized CNC routers, and users requiring highly customizable functions and complex path control. If you're comfortable with computer operation and want powerful features with flexibility, this type of controller is an ideal choice.



2.2 DSP Handheld Controllers: The Epitome of Independence and Convenience



These controllers are typically standalone handheld devices that can operate the CNC machine without a computer.

• Representative Brands: RichAuto, Weihong, and other Chinese domestic systems.

• Pros:

  • Standalone Operation: No computer connection needed, reducing workspace clutter and the risk of computer-related failures.

  • Convenient Operation: Usually features physical buttons and an LCD screen for intuitive, easy-to-learn operation.

  • Strong Anti-Interference: Standalone systems are generally more stable and less susceptible to external electromagnetic interference.

  • Relatively Lower Cost: Some entry-level DSP controllers can be more economical compared to PC-based systems.

• Cons:

  • Relatively Fixed Functions: Less expandable than PC-based systems, and software updates might be less convenient.

  • Limited Interface: Screens are usually small, with limited graphical display capabilities.

  • File Transfer: Typically uses a USB drive for G-code file transfer.

• Ideal For: Users seeking simple operation, a tidy workspace, or working in harsh industrial environments. Especially suitable for woodworking CNC routers and advertising industry CNC routers where stability and ease of use are prioritized.



2.3 Integrated/Embedded Controllers: Compact and Professional



These controllers typically integrate the main control chip, drive circuits, and sometimes even the operation interface into one compact unit, without the need for an external computer. Some are based on Linux or RTOS (Real-Time Operating System) development.

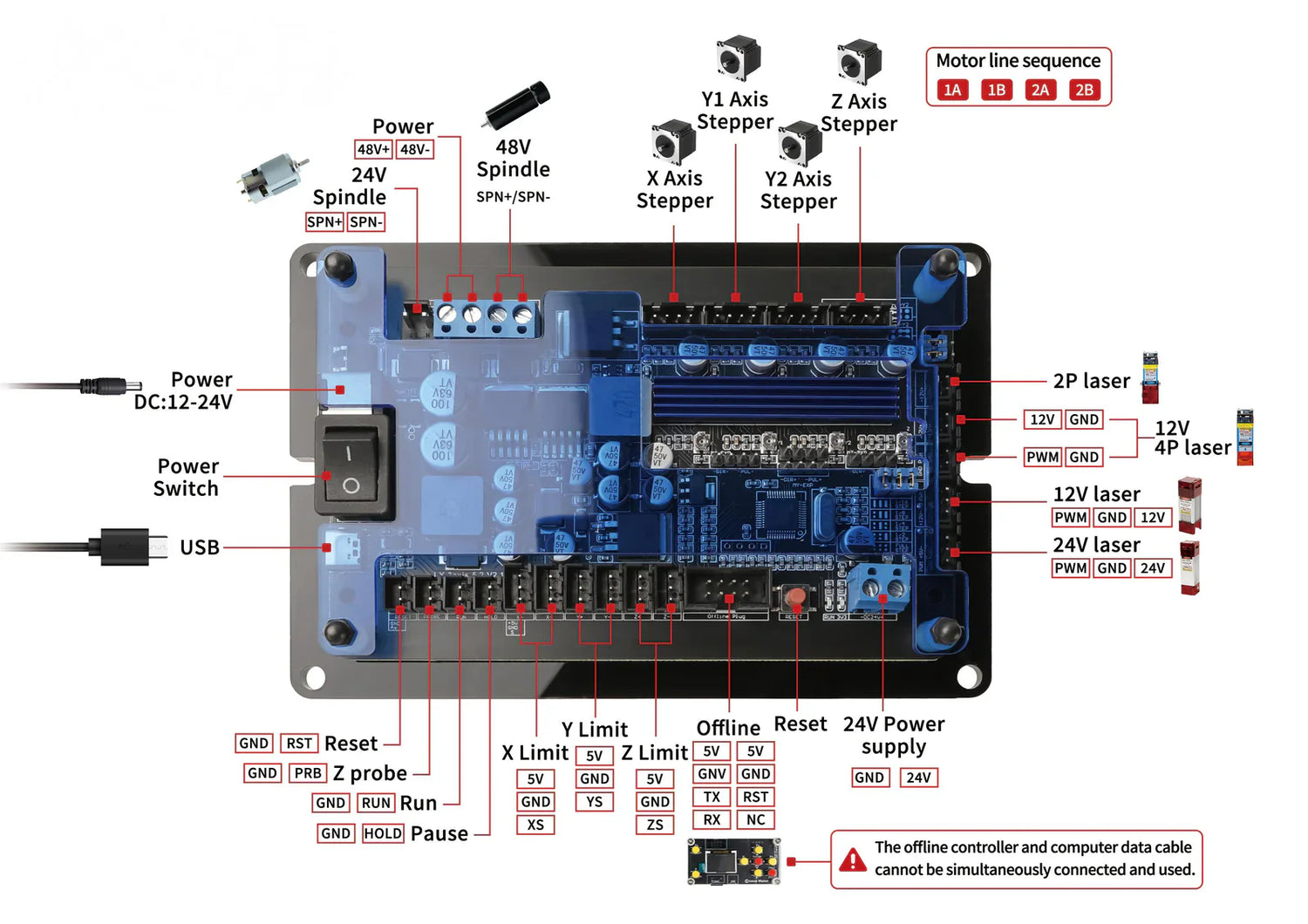

• Representative Brands/Systems: Syntec, LNC, FANUC, Siemens for industrial-grade systems; or integrated systems built into some small CNC machines (e.g., Grbl controllers with a screen).

• Pros:

  • Highly Integrated: Compact structure, simple wiring, space-saving.

  • High Stability: Designed specifically for CNC, often boasting excellent real-time performance and anti-interference capabilities.

  • Professional Features: Often support more advanced machining functions and complex motion control algorithms.

• Cons:

  • High Cost: Especially industrial-grade systems, which are very expensive.

  • Limited Flexibility: Usually closed systems, limiting user modification or function expansion.

  • Operation Interface: May be less intuitive than PC-based systems, requiring a learning curve.

• Ideal For: Industrial-grade CNC machining centers, large high-precision CNC routers, or users with extremely high demands for reliability, stability, and professional features.



3. Key Factors for Choosing a Controller



• Your Budget: The price difference between different controller types can be vast. A clear budget helps narrow down your choices.

• Operating Style and Technical Skill Level: Are you a computer expert, or do you prefer physical button operation? How proficient are you with programming and debugging?

• Precision and Speed Requirements: High precision and high-speed machining typically demand more powerful controllers and stable closed-loop systems.

• Machine Scale and Complexity: The number of axes, whether you need automatic tool changing, and whether external interfaces are required will all influence the controller choice.

• Functional Expandability: Do you foresee needing to add a rotary axis, a laser module, or other custom functions in the future?

• Community Support and Learning Resources: An active user community and abundant online tutorials can greatly help you resolve issues you encounter during use.

• After-Sales Service: Especially for industrial-grade controllers, good after-sales service is crucial.
