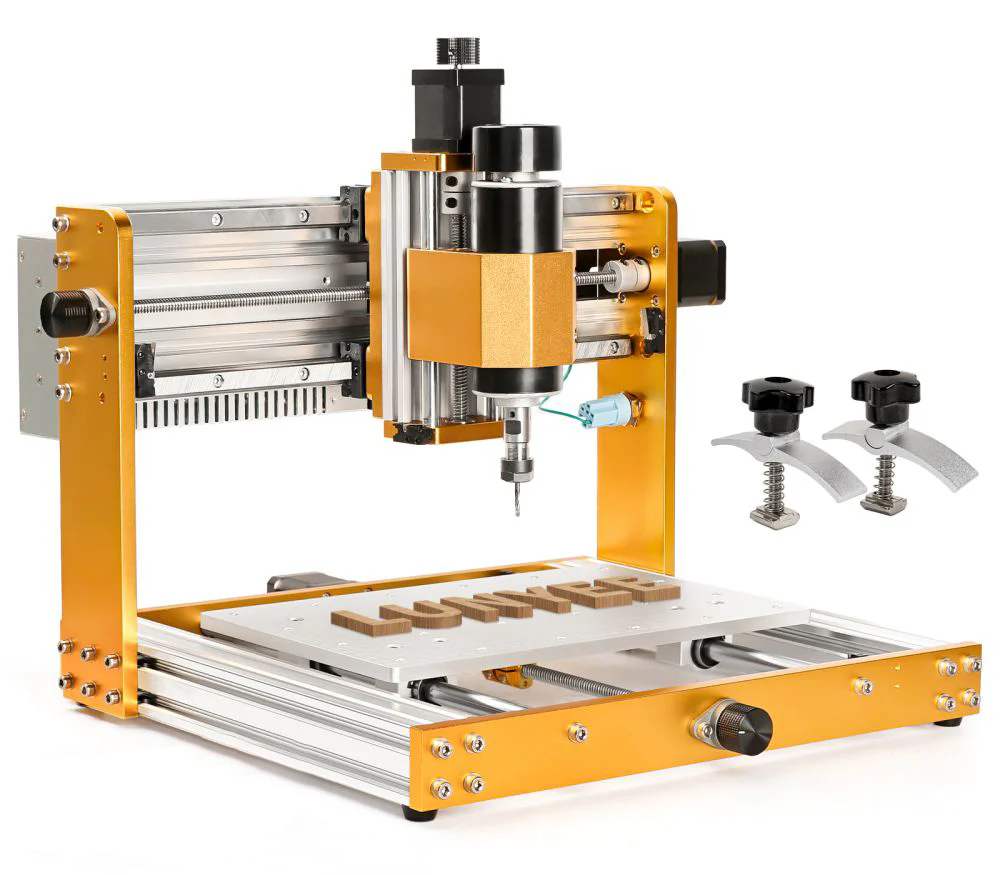

Name: Máquina CNC LUNYEE 3018 Pro Ultra 500W Máquina de roteador CNC totalmente em metal
Brand: LUNYEE
SKU: 3018plus3.0-500w
Availability: InStock
Rating: 5 (11 reviews)

New Structural Upgrade

Based on a Z-axis height of 80mm and a 500W spindle, the X-axis is upgraded to the HGH15 linear guide. These new upgrades make metal engraving easier and are perfect for unlimited drilling and engraving on various metals, such as brass, copper, and 6061 aluminum.

High Precision

Building on the basis of 3018 Pro Max, this CNC router features upgraded components, including a robust 2040 X-axis profile, 4040 Y-axis profile, and integrated machined and molded aluminum end plates with measuring scales, improving engraving accuracy and processing strength.

Built-in Switching Power Supply Design

It has an upgraded power supply with an integrated design, significantly reducing wiring time while improving safety and installation efficiency.

Wide Material Cutting Applications

The 3018 Pro Ultra is designed for cutting a variety of materials, including wood, aluminum, brass, carbon fiber, and acrylic. Equipped with a powerful 500W spindle, it delivers greater precision and performance, making it ideal for a wide range of applications and user needs.

Efficient Pre-assembly

More components are pre-assembled, including the frame, emergency stop button, limit switches, and cable management. This mostly pre-assembled desktop CNC machine can be up and running in just 20 minutes,, making it hassle-free for beginners.

Enhanced Safety

The 3018 CNC Pro Ultra router is equipped with 6 limit switches and an emergency stop button to ensure optimal user safety.

Offline Control

The machine comes with a newly designed offline controller featuring a 1.8-inch display, allowing you to clearly view readings and control the CNC router without the need to connect to a computer. The CNC router can be placed anywhere you like, such as in a garage or workshop.

Upgraded 32-bit Control Board

The new control board is equipped with, but not limited to, an MPG port, a 3-pin laser port, and an air assist pump port. These ports will support more additional components, expanding the functionality of your CNC machine.

Laser Module Available

If you want to upgrade your CNC engraving machine, you can add a matching laser module kit. Compatible 5.5W/10W compressed spot laser modules and fixed-focus laser modules are available. In addition, the control board supports adding an air pump to the laser module for faster and deeper cutting.

Model Name	LUNYEE 3018PRO ULTRA
Work Area	300 x 180 x 80mm (11.81 x 7.09 x 3.15 inch)
Overall Dimensions	422 x 414 x 350mm (16.61 x 16.30 x 13.78 inch)
Control Board Compatibility	4-axis 5.0 GRBL 1.1f
MCU	32-Bit
Max Speed	5000mm/min
Control Software	Software Based on GRBL Firmware, e.g. Fusion360, Easel, Candle, UGS, LaserGRBL, LightBurn
Body Material	Aluminum Alloy & Carbon Steel
Accuracy	±0.1mm
Motion System	Linear Guides：X-HG15 Optical axis：Y, Z Lead screw：X, Y, Z
Spindle Motor	500W Spindle Motor
Stepper Motor	NEMA 17, Stepper Motor
Safety	XYZ Limit Switch & Emergency Stop Switch
Power Supply	AC110/230V (Switch Power)
Net Weight	14kg (31 lb)
