Descrição

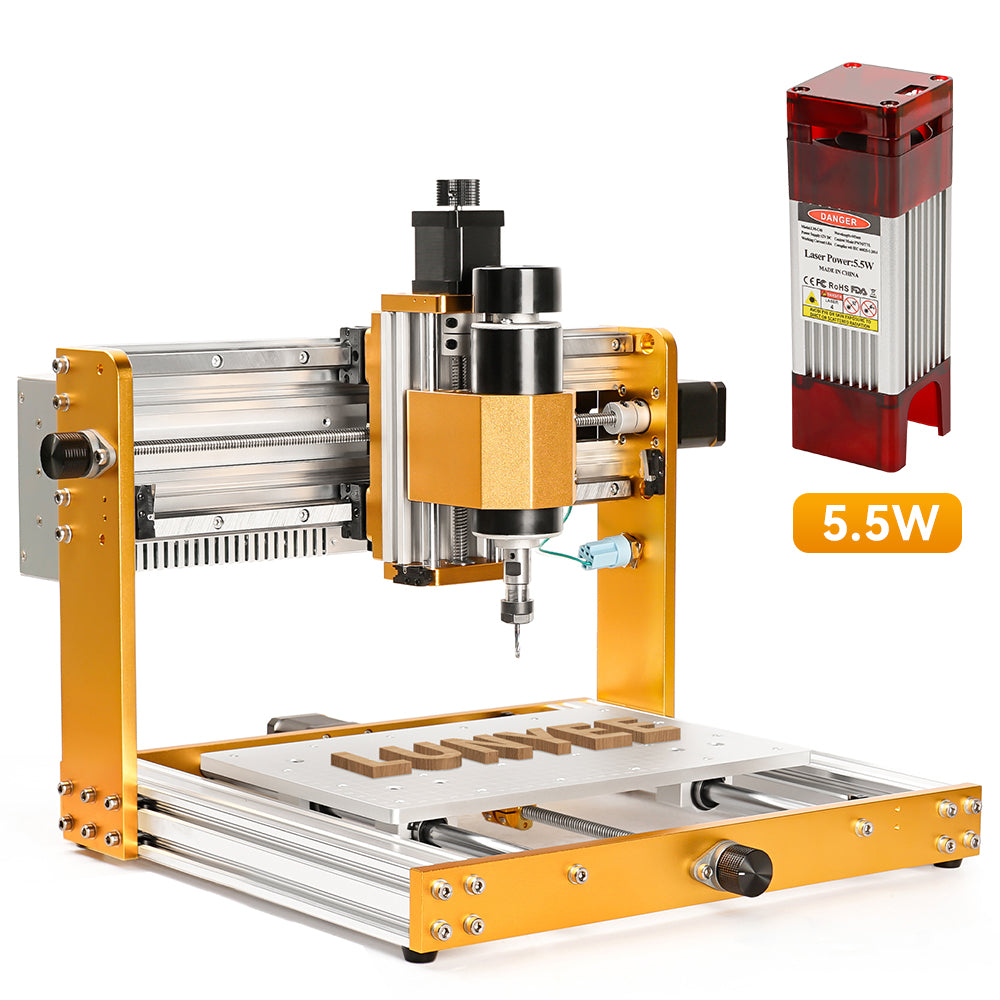

| Model | 3018 Pro Ultra |
| Driver Chip | 3*A4988 |
| Control Board | 3 Axis 5.2 GRBL 1.1f |
| Motor | 42 stepper motors, body length 48mm |
| X-axis transmission mode | HGH15 linear guide + T8 screw |
| Y-axis transmission mode | Optical axis + T8 screw |
| Z-axis transmission mode | Optical axis + T8 screw |
| Screw Nut Type | Double nut gap adjustment |
| Machine Size | 485x415x374mm |
| Working Area | 300*180*80mm |
| Repeatability | ±0.025 |
| Precision | ±0.1 |
| Maximum operating speed | 5000mm/min |
| Maximum processing speed | 2000mm/min |
| Maximum acceleration | 200mm/s² |
| Manual knob | Support |
| Couplings | Rigid Clamp Couplings |
| Frame | Reinforced aluminum profile + aluminum alloy plate |
| Spindle Power | 500W |
| Power | 48V 500W |
| Emergency stop switch | Support |
| Limit switch | Supports 6 (X+, X-, Y+, Y-, Z+, Z-) |
| Z-axis tool setting | Support the installation of tool setting instrument |
| Laser module | support (12V 40mm size laser) |
| Software | Candle |
| Applicable materials | Plastic, wood, stone, aluminum, copper |
| Weight |
15KG |
LUNYEE 3018 Pro Ultra CNC M...
